RTD

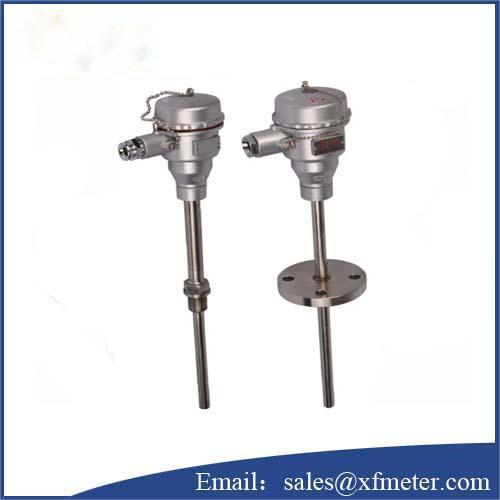

WZ Explosion proof RTD

Brand: Xunfei
Explosion Grade: ExdIICT4~CT6
Delivery: 1 week Exw
Minimual Order Qty: 5pcs
Product description: High quality and competitive price of WZ Explosion proof RTD manufacturer in China. Email: sales@xfmeter.com
INQUIRY

Description

WZ Explosion proof RTD produced by Xunfei is a temperature sensor which is widely used in industrial automatic control systems. It can switch the object’s temperature parameter into signals and send it to displayer, recorder and regulator. Our explosion-proof resistance thermometer is suitable to occasions with explosive gas where the temperature group is between dIIBT4～dIICT6.

Specification

Model

Graduation

Range(℃)

Accuracy class

Allowable error(△t centigrade)

WZP

WZP2

WZPK

WZPK2

Pt100

-200～500

±＜650℃

±（0.15 +0.002︱t︱）

-200～800℃

±（0.3 or +0.005︱t︱）

Model

Explosion proof RTD (PT100)

W	Z	P	Spec					Description
Temp meter	Thermal resistane	Material	-
				2				Fixed thread
				4				Fixed flange
				6				Fixed thread Cone tube
				Connection type	4			Explosion proof
					Junction box type	S		RTD (PT100) type
						Type	A	Update No
W	Z	P	-	□	□	S	A
