RTD

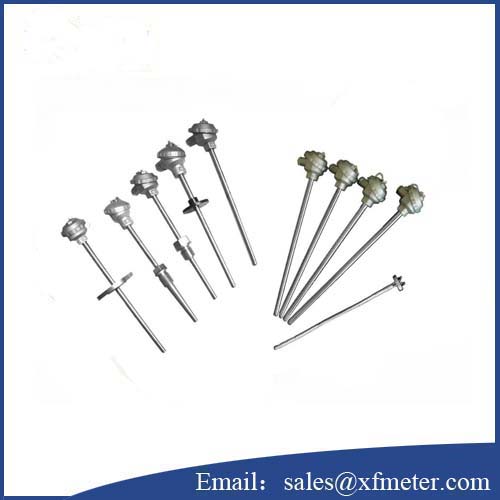

WZ Assembled RTD

Explosion Grade: ExdIICT4~CT6
Delivery: 1 week Exw
Minimual Order Qty: 5pcs
Product description: High quality and competitive price of WZ Assembled RTD manufacturer in China. Email: sales@xfmeter.com
INQUIRY

Description

The WZ Assembled RTD produced by Xunfei is used with displayer, recorder and electrical adjuster completely. It can measure the temperature of liquid, vapor, gas and the surface of solid from -200℃ to 420℃ directly. Per national regulation, we have manufactured PT100 platinum resistance thermometer in line of IEC international standard graduation and CU50 copper resistance in line of professional graduation since 1987.

Type	°C Range	Graduation	Allowed deviation Δ°C
WZP Platinum resistor	﹣200-420	Pt100	B(0.30+0.005\|t\|)
			A(0.15+0.002t)

Models

W	Temperature meter
Z	Resistance thermometer
Resistor material	P）platinum resistance
install and fixed type	1）Without fixed device type 2）fixed thread type 3）movable flange 4）fixed flange type 6）fixed thread taper protect tube type
junction box type	2）splash proof type 3）waterproof type Un-standard：socket mount type，small junction box type and so on
design series number	0）ø16mm protecting tube 1）ø12mm protecting tube Un-standard：all sizes of protecting tubes

RTD (PT100) without fixed device

Type	Model	Graduation	Range	Tube Material	d mm	Response time
Simplex type	WZP-120	Pt100	-20~420	1Cr1BNi9Ti	φ16	≤90
	WZP-121				φ12	≤30
	WZP-130				φ16	≤90
	WZP-131				φ12	≤30
Duplex type	WZP2-120				φ16	≤90
	WZP2-121				φ12	≤45
	WZP2-130				φ16	≤90
	WZP2-131				φ12	≤45
