Butterfly valve

  • Triple offset butterfly valve
Triple offset butterfly valve

Triple offset butterfly valve

  • Brand: Xunfei
  • Model slection: Customized
  • Min Qty: 1pcs
  • Payment: T/T
  • Product description: High quality and competitive price of Top Guieded control valve manufacturer in China, Email: sales@xfmeter.com

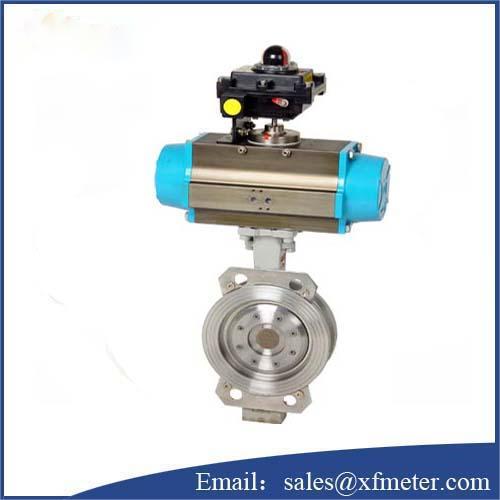

XF51 Triple Offset Butterfly Valve

Product Introduction
XF51 Triple offset butterfly valve is adopted a muti-level triple offset metal seal structure, precision valve plate sealing surface after polishing combine with triple offset sealing surface, resistant to high temperature, high pressure, allowing the media have tiny particles, long service life and other characteristics. Bi-directional zero leakage, reliable sealing for high vacuum systems; self-tight sealing, ultra-low torque, rapid opening and closing effort; simple structure, small size, easy to maintain, easy to install; long life, suitable for frequent switching, durable; has lengthened precision composite bearings and stem anti-out safety design, is widely used in metallurgical, chemical, oil, combustible gas, drainage and other industries.

Technical Parameter

·Nominal diameter: DN50~1000mm
·Nominal Pressure: PN6~64,ANSI 150~600LB
·Connection: Flanged, Wafer type
·Body material: WCB, CF8, CF8M,CF3M, etc.
·Packing: PTFE, Flexible Graphite

Trim Parts:
Disc type: Triple offset disc
Flow Characteristic: On-off type, EQP
Disc Material:  CF8, CF8M, CF3, CF3M

Leakage: Metal Seal:     Conforms to ANSI B16.104 IV
Non-metal Seal: Conform to ANSI B16.104 VI
Adjustable Ratio: 100:1
Return Difference: 1﹪(With positioner)
Linear: ±1﹪(With positioner)
Accessories (Equipped according to requirement)
Positioner, air filter regulator, hand wheel, limit switch, solenoid valve, Pneumatic valve, lock up valve.
