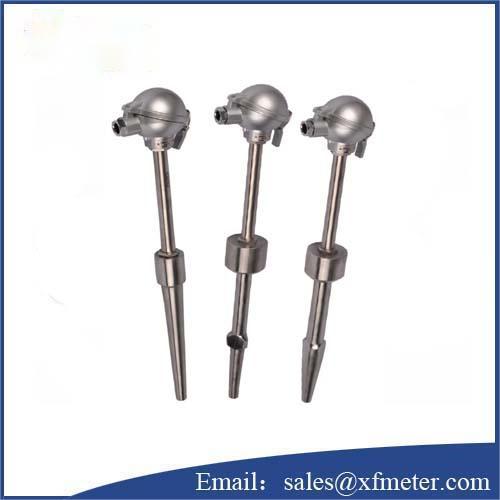

WZ Thermowell RTD

Brand: Xunfei
Explosion Grade: ExdIICT4~CT6
Delivery: 1 week Exw
Minimual Order Qty: 5pcs
Product description: High quality and competitive price of WZ Thermowell RTD manufacturer in China. Email: sales@xfmeter.com
INQUIRY

Brief Introduction

WZ Thermowell RTD can be used as the sensor to measure and control the medium, such as the gas, liquid, steam during process controlling. WZ Thermowell RTD not only used for measuring the power plant pipe temperature, but also used in the department of other industries. The thermowell RTD (PT100) complies to the tech documents of JB/T9238T and JB/T8622-1997.

Model and spec

Name	Model	Graduation	Range ℃	Pressure MPa	Material
Single RTD	WZP-2328	Pt100	-200～500℃	9.8	1Cr18Ni9Ti
Double RTD	WZP₂-2328	Pt100	-200～500℃	9.8	1Cr18Ni9Ti

Insert 1（mm）：230，430，630，1130

Name	Model	Graduation	Range ℃	Pressure MPa	Material	Name
Single RTD	WZP-93C1	Pt100	-200～500℃	≤29.4	≤100	0Cr18Ni12Mo2Ti
Double RTD	WZP₂-93C1

Insert 1（mm）：50，100，150

Name	Model	Graduation	Range ℃	Pressure MPa	Material	Name
Single RTD	WZP-93C2	Pt100	-200～500℃	≤29.4	≤100	1Cr18Ni9Ti
Double RTD	WZP₂-93C2

Insert 1（mm）：50，100，150，200，250，300

Name	Model	Graduation	Range ℃	Pressure MPa	Material	Name
Single RTD	WZP-633	Pt100	-200～260℃	≤2	≤9	M33×2
Double RTD	WZP₂-633					M33×2
Single RTD	WZP-634					ZGI″（NPT″）
Double RTD	WZP₂-634					ZGI″（NPT″）
