Thermocouple

  • WR-Spring-Fixed-Thermocouple

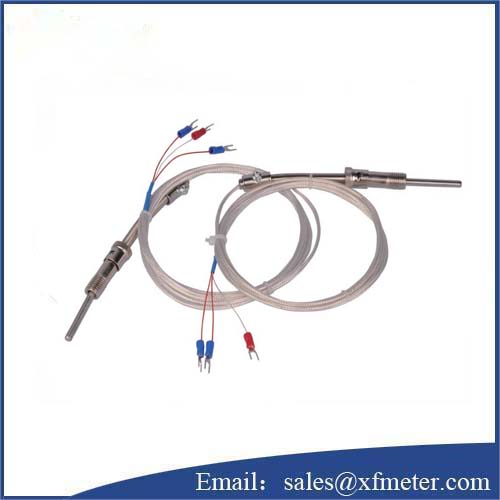

WR-Spring-Fixed-Thermocouple

WR-Spring-Fixed-Thermocouple

  • Brand: Xunfei
  • Explosion Grade: ExdIICT4~CT6
  • Delivery: 1 week Exw
  • Minimual Order Qty: 5pcs
  • Product description: High quality and competitive price of WR-Spring-Fixed-Thermocouple manufacturer in China. Email: sales@xfmeter.com
  • INQUIRY

Overview:

WR Spring Fixed Thermocouple makes the thermocouple end close to the surface of the object being measured by compression spring in order to improve the reliability and accuracy of the measurement. Working with the display instruments, it can directly measure the temperature within 0~400℃.WR Spring Fixed Thermocouple is taken with a soft extensible guide line which can be freely bent and it has characteristics such as little thermal response time, easy to use, and it is suitable for industries such as plastic extrusion machines, textiles, food and so on.

Working Principle:

WR Spring Fixed Thermocouple principle, indexing features and connection with displayer is same as the general thermocouple. WR-Spring-Fixed-Thermocouple structure is consisted of protection tubes, mounting bolts, lock nut, springs and thermocouple wires as the icon shown.

Model and Spec:

Model

Graduation

Measure range

Thermal Response t0.5

Tube Material

WRET-01

WRNT-01

E(EA-2)

K

0~400

0600

<5

Stainless

1Cr18Ni9T

Spec

Connected Bolt L2mm

Total Lmm

Tube L mm

1000

1500

2000

2500

3000

3500

4000

30

30

30

30

30

30

30















35 or 70

1000

1500

2000

2500

3000

3500

4000

60

60

60

60

60

60

60
